EEM24027

Proven Design for Endless Hotwater

Eemax’s heating technology blows away other water heating products, making it the Proven Choice.

  • Durable, Easily Replaceable Heating Elements
  • Digital Temperature Display
  • Adjustable Temperature in Increments of 1ºF
  • Smart, Energy Efficient, Digital Technology
Features

• Copper Emerson heating elements with brass top increase durability and are threaded for easy replacement

• Simple Installation: 3 foot electric cable included and 1/2” CF water connectors for easy installation

• Instant, consistent and endless hot water

• Compact, resistant and stylish with digital temperature control in increments of 1°F ranging from 80°F to 140°F

• 99.8% energy efficient

Specifications

Size: 17”H x 17”W x 3.75”D

Weight: 13.75 lbs.

Rated Pressure: 25psi minimum; 150psi maximum

Certifications: ETL Listed to UL 499 and CSA

Unique Features: Solid, hand-welded exchanger NPT adapters also included

Standard Temp Settings: 120°F (Adjustable 80-140°F)

Max Flow Rate: 7 GPM @ 60psi

Turn-On: 0.3 GPM

Electrical Configuration and Requirements

kW: 27

Volts: 240

Amps: 112.5

Wire Gauge Required: 3×8 AWG

Breaker: 3×40 AMPS

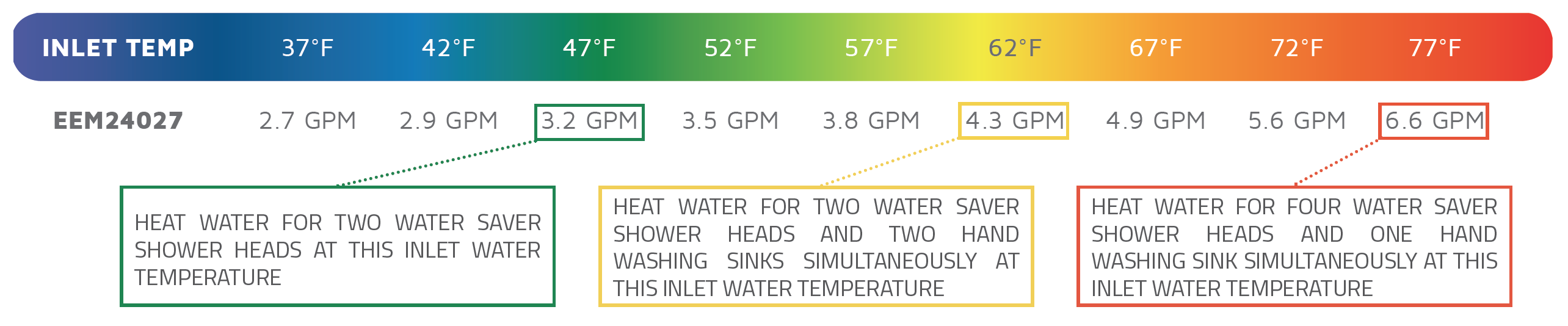

Applications

• Water-Saver Shower Head 1.5 GPM

• Standard Shower Head 2.0 GPM

• Standard Hand Sink 0.5 GPM

• Kitchen Sink 1 to 2 GPM

• Bath Tub ≥ 4 GPM

• Dishwasher 1 to 2 GPM

• Washing Machine 1 to 1.5 GPM

Average Gallons Per Minute (GPM) based on 2010 Plumbing Standards

Example Applications

Eemax is the #1 supplier of tankless water heater solutions. For over 25 years we’ve offered energy efficient, on demand hot water heaters for commercial applications, residential homes, and industrial safety applications. Our green, environmentally friendly water heaters offer the largest selection in the industry.
